Compact Lidar Scanner

958200002

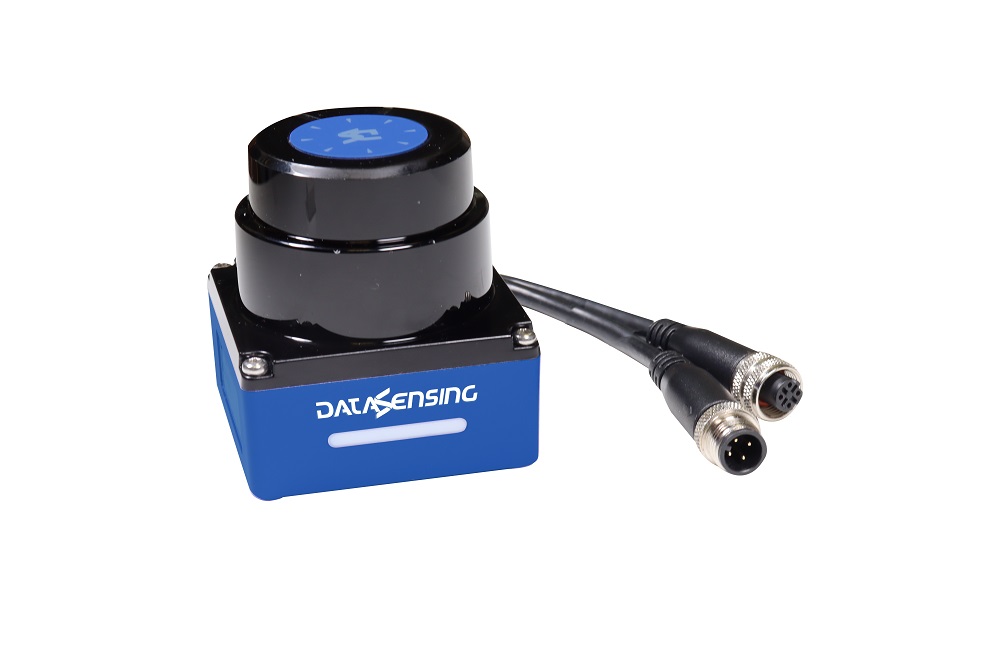

LGS-N25
Compact Lidar for navigation and guidance 25 m

Compact Lidar Scanner

Overview

Very Compact, reliable and rugged Lidar for navigation of automated guided vehicles and for object profiling available also for outdoor applications. Very easy to install and use.
  • ToF technology on infrared laser
  • 2D Measurement data for natural navigation and for object profiling
  • 360° measurement for all-round scanning
  • Very Compact design suitable also for smaller machines
  • High precision and reliable measurement up to 25 meters
  • Up to 225000 measured points per second
  • Up to 25 Hz selectable rotation frequency
  • 0.25° angle resolution
  • Dimensions: 65 x 65 x 70 mm

Technical Features

Detection properties
Nominal sensing distance 25 m
Minimum sensing distance (blind zone) 0.1 mt
Scan angle 360 °
Application
Description Compact lidar LGS-N25
Functions AGV Navigation Laser Scanner
Configuration and monitoring interface Generic web browser ; LGS Viewer
Outputs
Output type IEEE 802.3u 100Mbps Ethernet
Data Transmitted angle of each measuring point with 0.25° of resolution<BR/> distance of each measuring point in mm<BR/> signal strenght of each measuring point ( 0-65535)<BR/> time stamp in ms each 24h/cycle<BR/> rotational frequency
Ethernet connection M12 4 pins M Key D
Electrical data
LED indicators Power (Green) / Fault (Red)
Emission Laser Infrared
Mechanical data
Dimensions 65x65x70 mm
Weight <500 gr
Connections M12
Operating temperature -10 / +60 °C
Material Metal - Aluminium / PC
Generical Data
Network Interface 10/100 Mbit/s Ethernet
Mechanical Protection IP67
