SG4-H

957901760

SG4-H14-015-OO-X-B

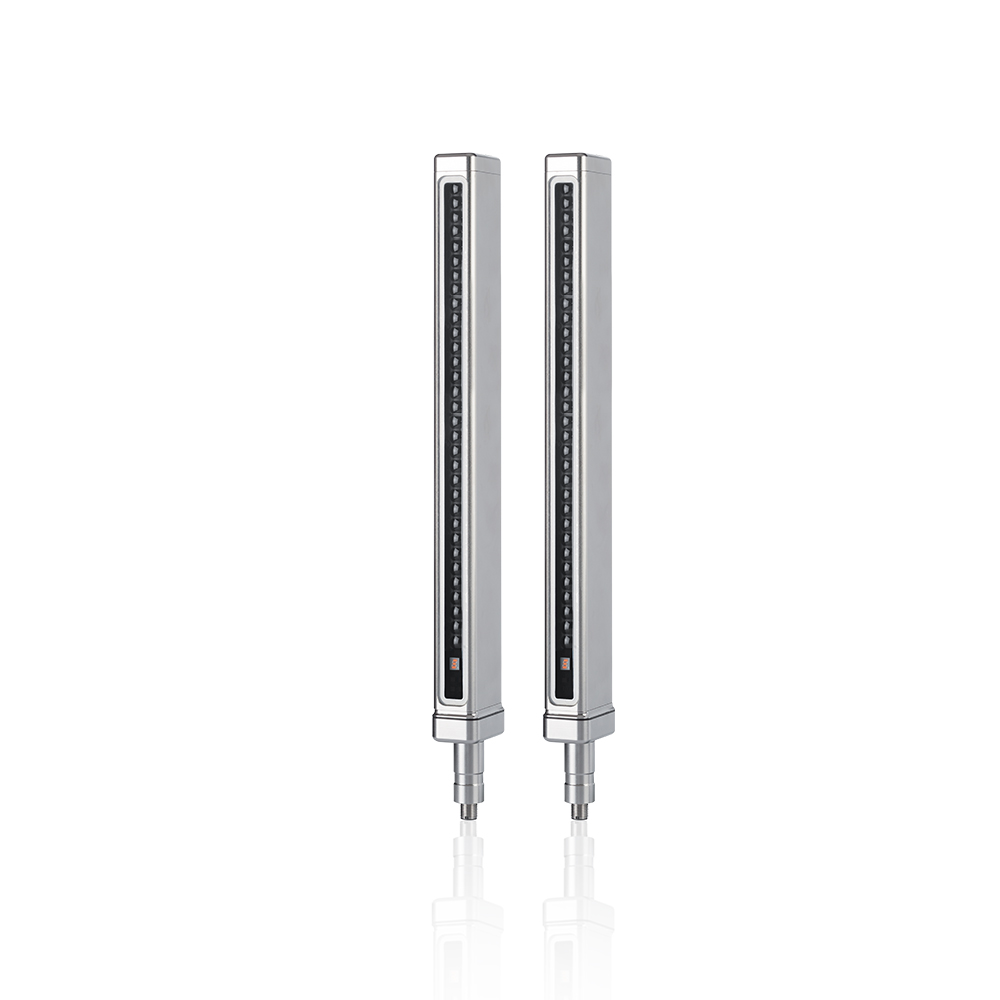

SG4-H safety light curtain stainless steel type 4 res = 14 mm h = 150 mm autorestart

Stainless steel type 4 safety light curtain for pharma industry

Overview

  • Stainless steel housing
  • Hygienic design
  • No need for additional protection tubes
  • IP69K full protection
  • Housing: AISI316L stainless steel with roughness under 0.8 micron
  • Window: Optical glass
  • Rounded surfaces with no gaps or sharp edges
  • No labels: All information laser marked
  • Maximum safety: Type 4, finger resolution
  • Three protection heights: 150, 300 and 450 mm
  • 50 x 30 mm profile
  • 4 LEDs and 7-segment display alignment aiding

Technical Features

Detection properties
Nominal sensing distance 0,2 … 6 m
Resolution 14mm
controlled height 150 mm
number of rays 16
Sensitivity adjustment n/a
Effective Aperture Angle ≤ ±2,5°
Application
Function Principle Emitter + Receiver
Available functions Automatic Restart, IP69K Hygienic Design
Description Hygienic design bottom mount
Functions Finger protection res. 14 mm
Safety parameters
Type Type 4 safety light curtain (A)
SIL 3
SILCL 3
PL e
PFHd 2,64E-09
Dcavg 98,80%
MTTFd 444 years
SFF 99,30%
Outputs
Output type 2 x PNP-NO (OSSD safety output)
Response time 11 ms
Electrical data
Operating Voltage 24 Vdc ± 20%
Load current ≤ 500mA each output
Emission Infrared LED (850 nm wavelength)
Interference to external light According to IEC 61496-2
Power Consumption - Receiver ≤ 3,5W (no load)
Power Consumption - Emitter ≤ 2,5W
Cabel Length (Power Supply/Output) ≤ 50m
Mechanical data
Dimensions 30x53x290
Connections M12-4 poles (emitter) M12-5 poles (receiver)
Storage temperature -25…+ 70°C
Material Stainless steel AISI 316L / Glass
Vibrations Width 0.35 mm, frequency 10 … 55Hz; 20 sweep per axis, 1octave/min (EN 60068-2-6)
Shocks 16 ms (10 G) 1,000 shocks per axis (EN 60068-2-29)
Test/Approvals
EMC compatibility According to 2014/30/EU Directive
Generical Data
Dimensions 33x53x290,6 mm
Operating Temperature -10…+55°C
Humidity 15 … 95 % (no condensation)
Mechanical Protection IP65, IP69K
