| Nominal sensing distance | 0,2 … 4,5m (with RL136) |
| Thermal drift of Sr | ≤10% |
| Beams space | 10mm |
| controlled height | 149mm |
| minimum detectable object | Ø 3…10mm @ 2m RL136 - Ø 3…20mm @ 4,5m RL136 |
| number of rays | 14 |
| Sensitivity adjustment | Teach in: fine < 3s; standard > 6s |
| Function Principle | Retroreflective polarized area sensor |
| Output type | IO Link/PNP |
| Output Function | NO/NC |
| Switching frequency | 320Hz |
| Operating Voltage | 12...30VDC |
| No-Load supply current | 135mA |
| Load current | 160mA |
| Leakage current | ≤1μA |
| Output voltage drop | 1,6Vdc @ 100mA |
| Max ripple content | ≤ 10% |
| LED indicators | green: power supply-alignment; red: dark/light status |
| Time delay before availability | < 700ms |
| Short-circuit protection | Yes (autoreset) |
| Reverse Polarity Protection | Yes |
| Emission | Red (617nm) |
| Interference to external light | 5000lux (fluorescent lamp); 50000lux (sunlight) |
| Impulsive Overvoltage Protection | Yes |

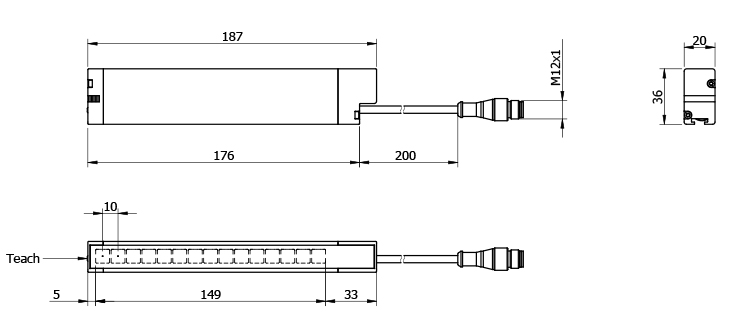

| Dimensions | 187mm x 20mm x 36mm |
| Weight | 170g |
| Housing Material | Aluminim |

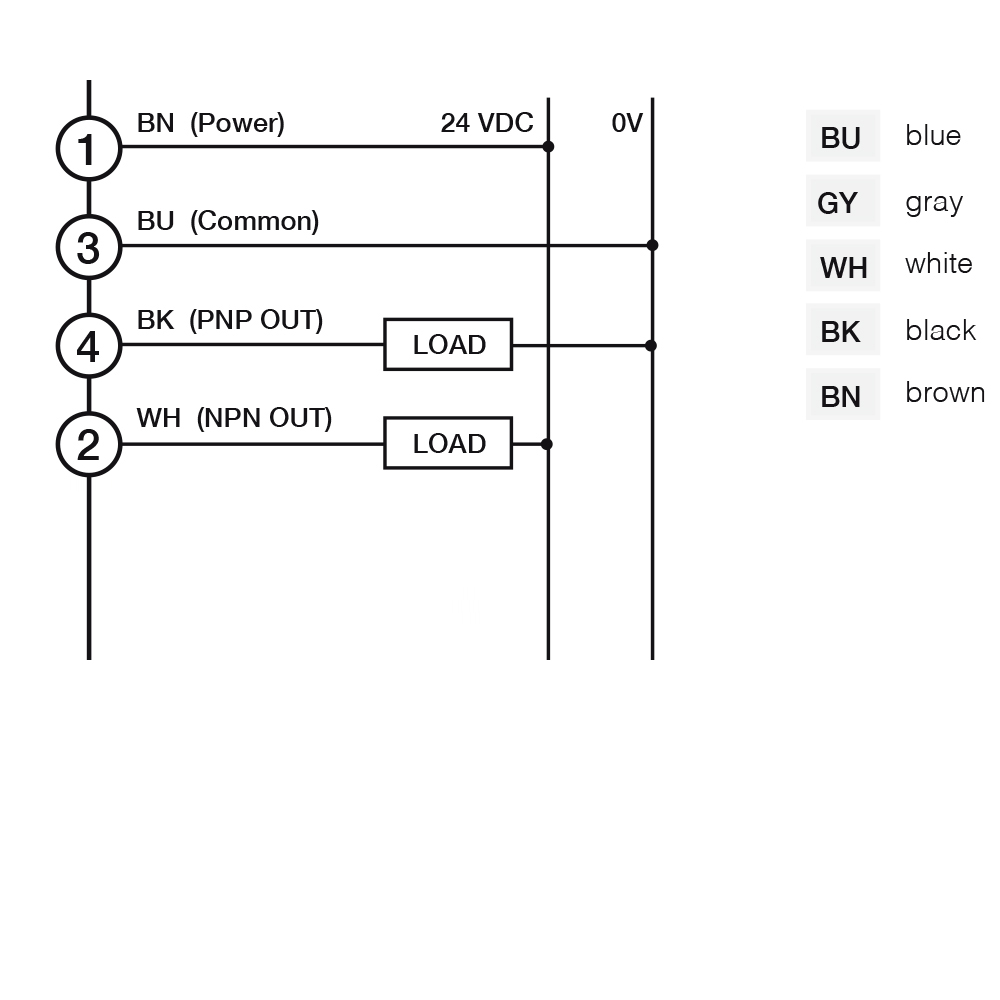

| Connections | M12 4pin + cable PVC 200mm |
| Active Head Material | PMMA |
| Operating temperature | -10°C…+ 55° C (no condensation) |
| Approvals | CE, cULus,UKCA |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | IEC EN 60947-5-2 / 7.4 |
| Degree of protection | IP67 |
| Supplied Accessories | RL136 reflector + fixing kit (ST151) |
| Dimensions | 187x20x36 |
| Operating Temperature | -10°C…+ 55° C (without freeze) |
| Mechanical Protection | IP67 |
