| Nominal sensing distance | 300mm |
| Thermal drift of Sr | ≤10% Sr |
| Repeat Accuracy | 5% |
| Sensitivity adjustment | Teach-in |
| Function Principle | Diffuse reflection (medium distance, ≤600mm) |

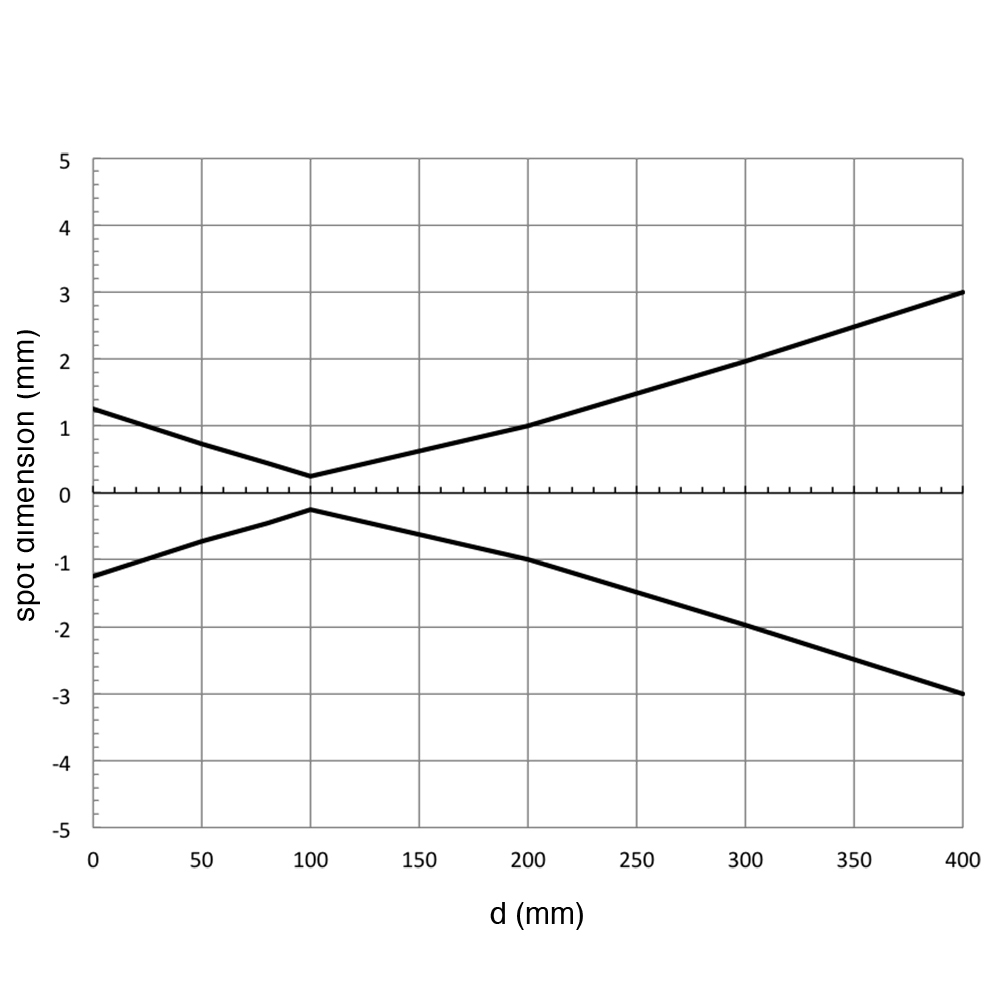

| Notes | (Focalized 100mm) white target 90% Kodak 200x200mm |
| Optic position | Axial |
| Output type | NPN NO+NC |
| Output Function | NO+NC |
| Switching frequency | 800Hz |
| Response time | 625µs |
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 30mA |
| Load current | ≤100mA |
| Leakage current | ≤10μA |
| Output voltage drop | ≤2V@Iload=100mA |
| Max ripple content | ≤10% |
| LED indicators | Green power supply/yellow (LightON EG≥2)/yellow flashing (LightON 1<EG<2) |
| Time delay before availability | ≤200ms |
| Short-circuit protection | Short circuit (autoreset), Overvoltage |
| Reverse Polarity Protection | Polarity inversal, Inpulsive voltage |
| Emission | LASER Red (650nm) class1 |
| Interference to external light | 3000lux (incandescent lamp), 10000lux (sunlight) |

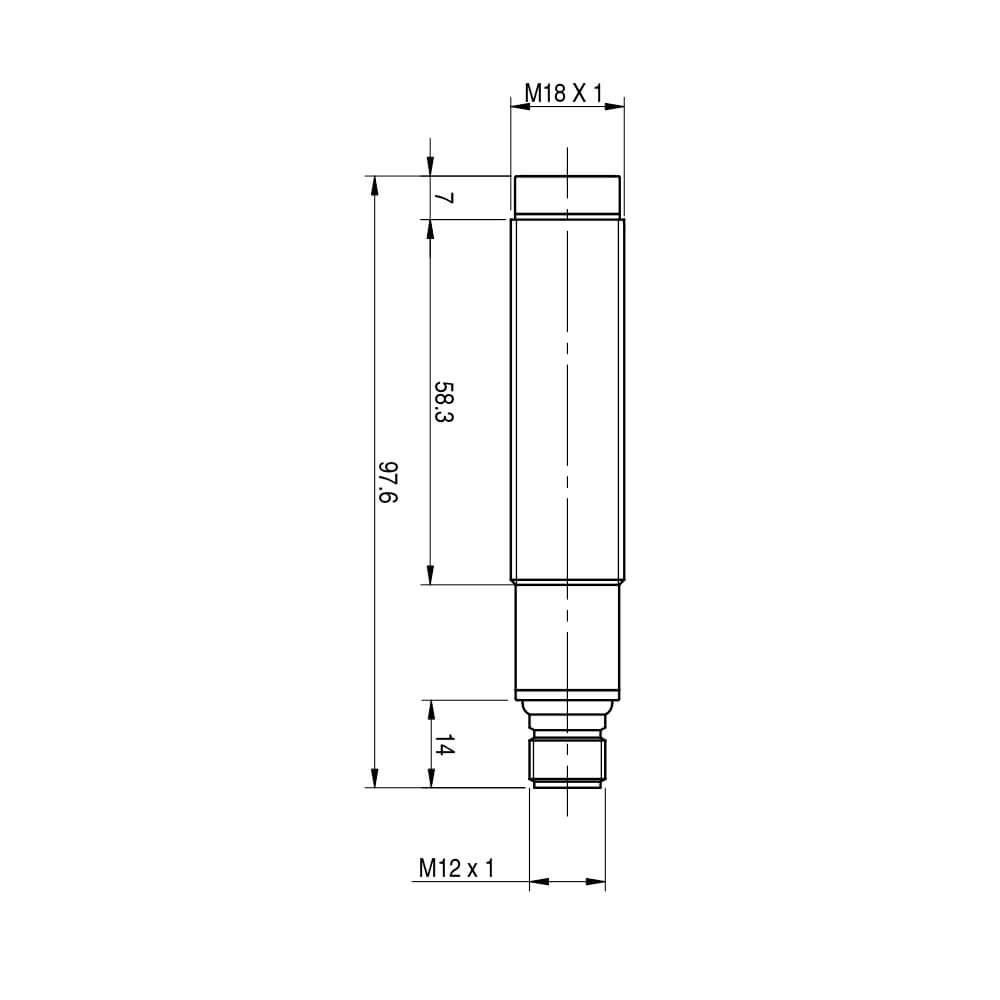

| Dimensions | M18 x 1/L=97,6m |
| Weight | 30g |
| Housing Material | PBT / PC plug |
| Connections | M12 plug |
| Active Head Material | Glass / PC |
| Tightening torque | 1Nm |
| Operating temperature | -15°C...+ 55°C (Without freeze) |
| Diameter/Dimension | M18 |
| Approvals | CE cULus |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 |
| Degree of protection | IP67 |
| Supplied Accessories | nuts M18 x 1, screwdriver |
| Dimensions | M18 x 1/L=97,6m |
| Operating Temperature | - 15°C...+ 55°C (Without freeze) |
| Mechanical Protection | IP67 |
