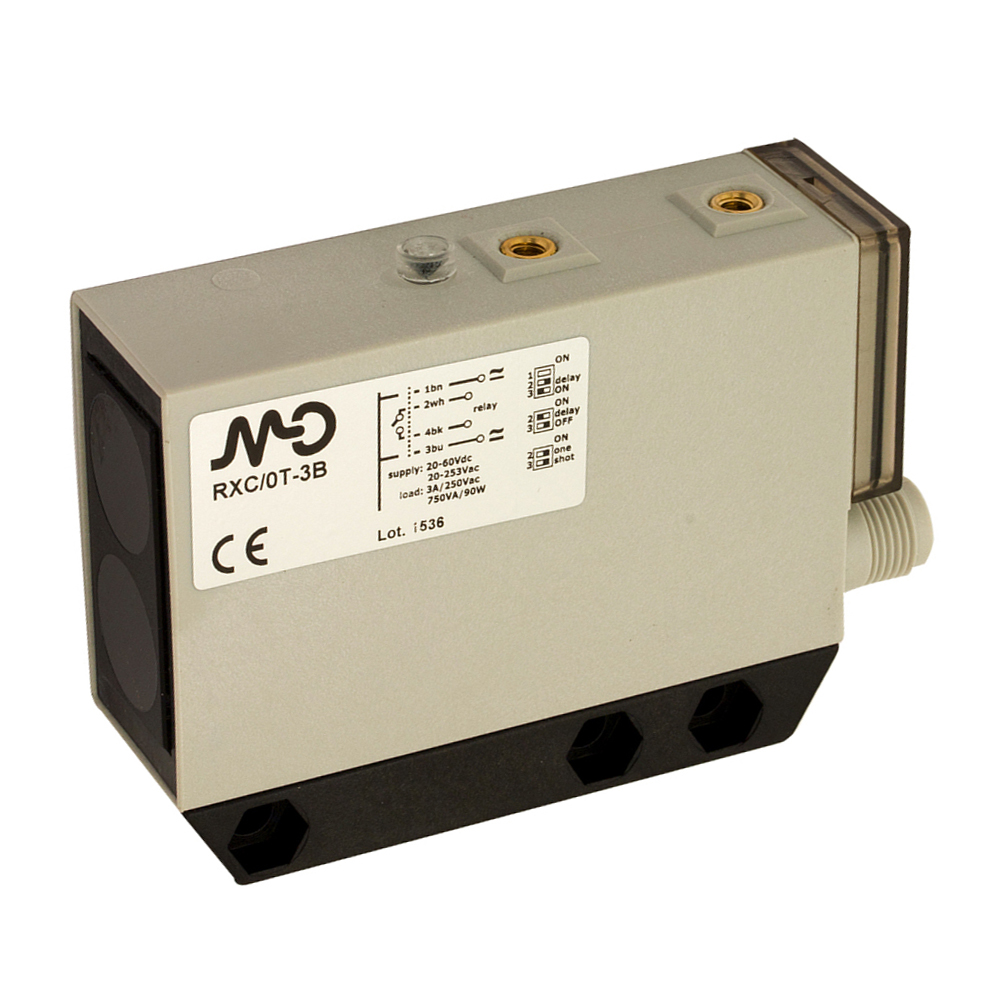

RX

RX6/00-1B

Photo.Maxi,NPN/PNP-NO/NC,M12 plug,Diff.
Photoelectric sensor maxi Diffuse 1000 mm 10...30Vdc NPN/PNP NO/NC with fixing slide conn. M12

Maxi with static output DC or with relay output AC/DC

Overview

  • Models: diffuse reflection, retro-reflective, polarized, through-beam and background suppression
  • Series with high performances and wide possibilities of installation
  • High sensing distance and very small dimensions
  • Relay output or multifunctional DECOUT®
  • Timer function delay on, delay off, one shot; trimmer for sensitivity adjustment
  • Switch reducing the emission for fine detection in through-beam types
  • LED alignment indicator with 360° visibility, 2 LED indicators (stable signal, output)
  • M12 standard plug cable exit; axial and right angle brackets

Technical Features

Detection properties
Nominal sensing distance 1m
Thermal drift of Sr 10% Sr
Repeat Accuracy 5%
Sensitivity adjustment Trimmer
Application
Function Principle Diffuse reflection (long distance, >600mm)
Notes white target Kodak 90% 400 x 400mm EG=1,5
Optic position Axial
Outputs
Output type Decout NPN/PNP Selectable Decout NO/NC Selectable
Output Function Decout NO/NC Selectable
Switching frequency 500Hz
Response time 1ms
Electrical data
Operating Voltage 10…30VDC
No-Load supply current ≤ 25mA
Load current ≤100mA
Leakage current ≤ 10μA
Output voltage drop ≤1,2V@Iload=100mA
Max ripple content ≤10%
LED indicators Red (output status) o (alineament), Green (stability)
Time delay before availability ≤200ms
Short-circuit protection Yes
Reverse Polarity Protection Yes
Emission LED Infrared (880nm)
Interference to external light ≥ 5000lux (incandescent lamp)
Mechanical data
Dimensions 26x86,6x61
Weight 90g
Housing Material PC
Connections M12 plug
Active Head Material PMMA
Operating temperature - 25°C…+ 70°C ( without freeze)
Diameter/Dimension Cubic
Test/Approvals
Approvals CE cULus
EMC compatibility EN 60947-5-2
Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
Degree of protection IP65
Accessories
Supplied Accessories ST81 mounting bracket and screws
Generical Data
Dimensions 26x86,6x61
Operating Temperature - 25°C…+ 70°C (Without freeze)
Mechanical Protection IP65

Connections

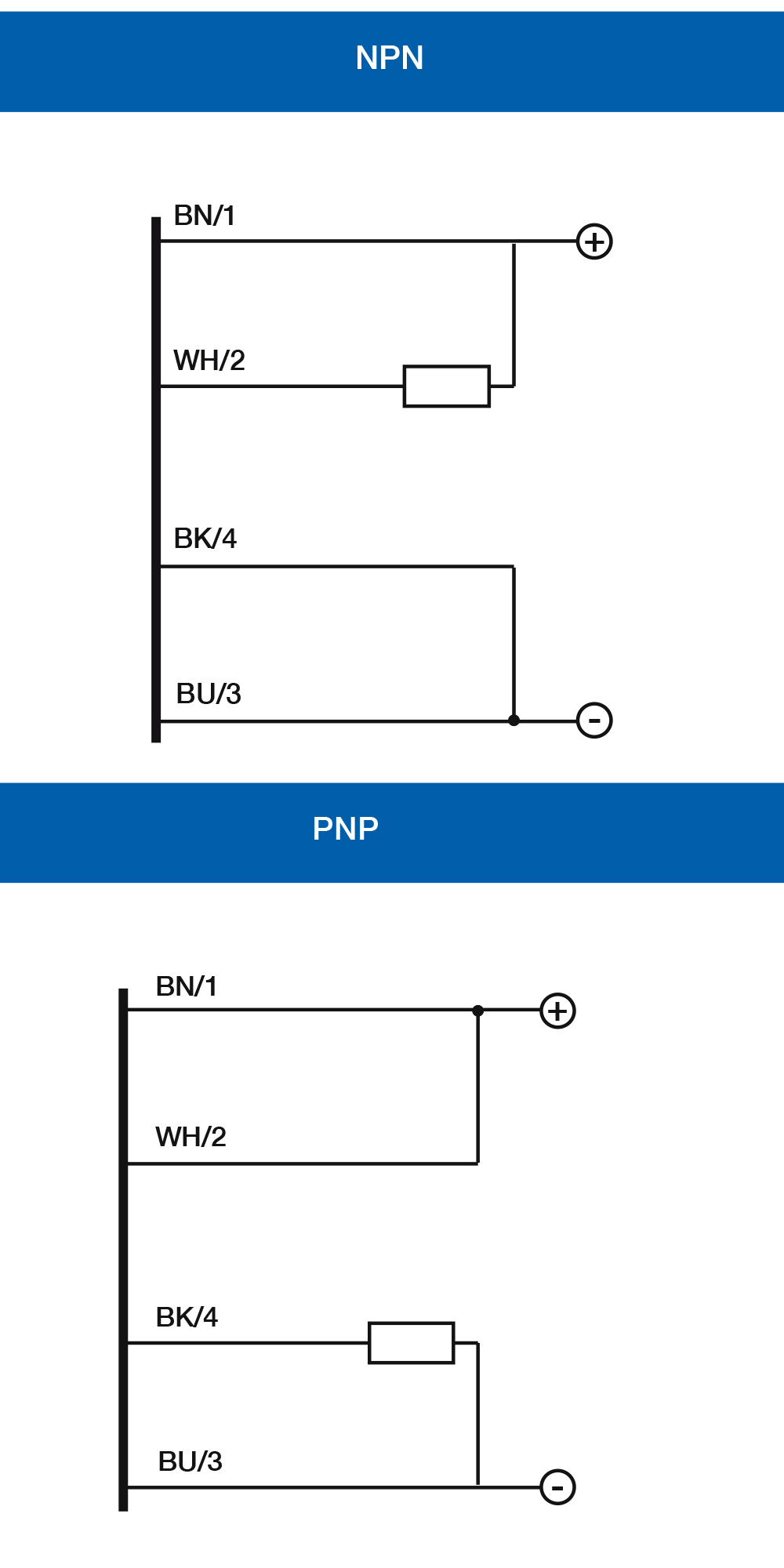

Eletrical diagram
Connector

Others

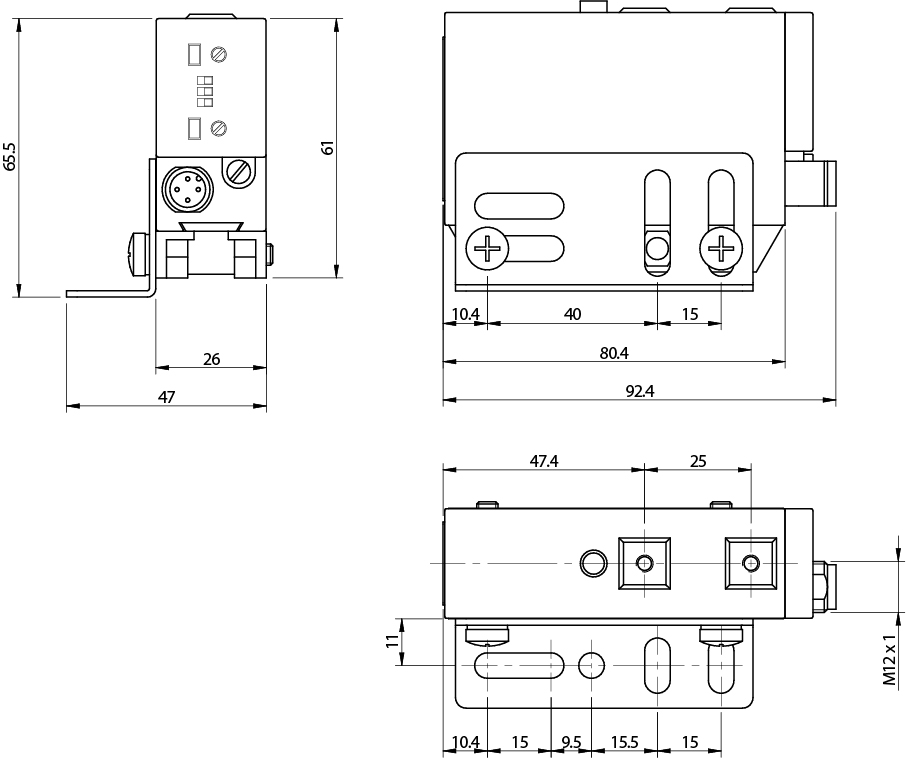

Dimensions

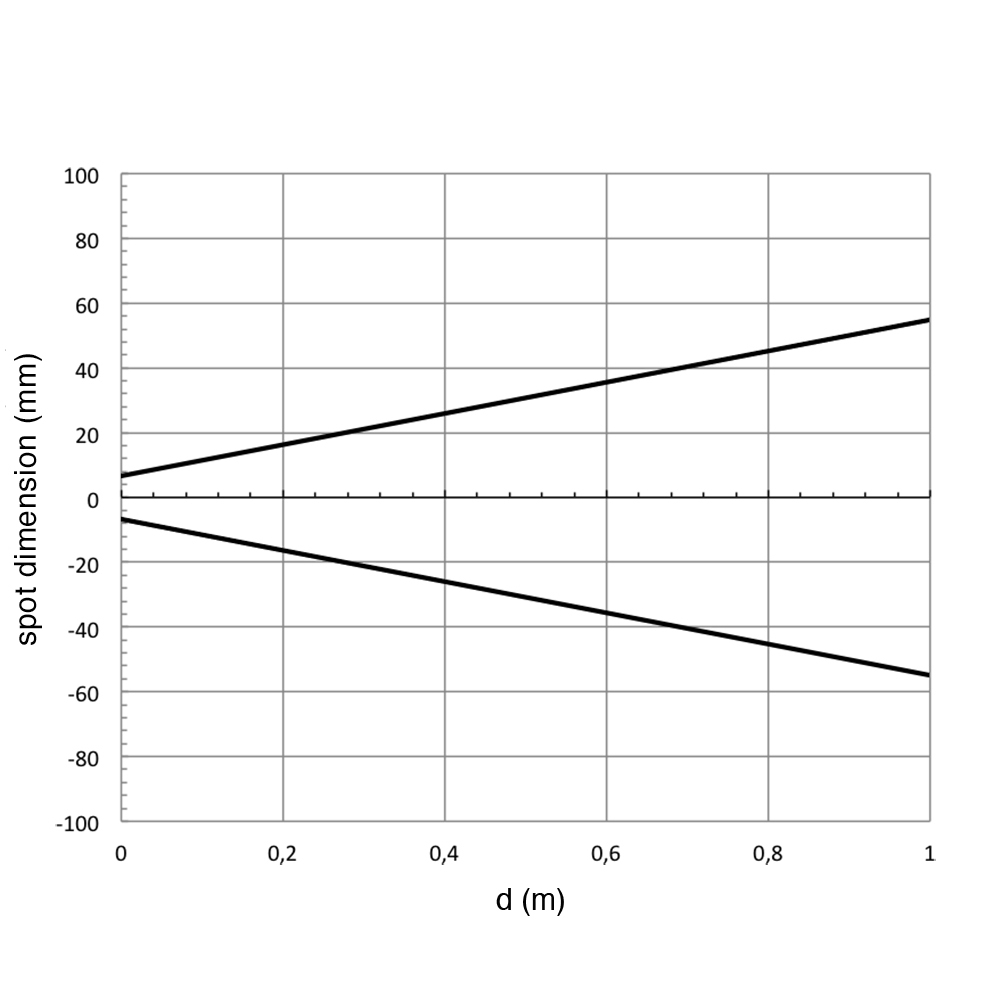

Response curves
