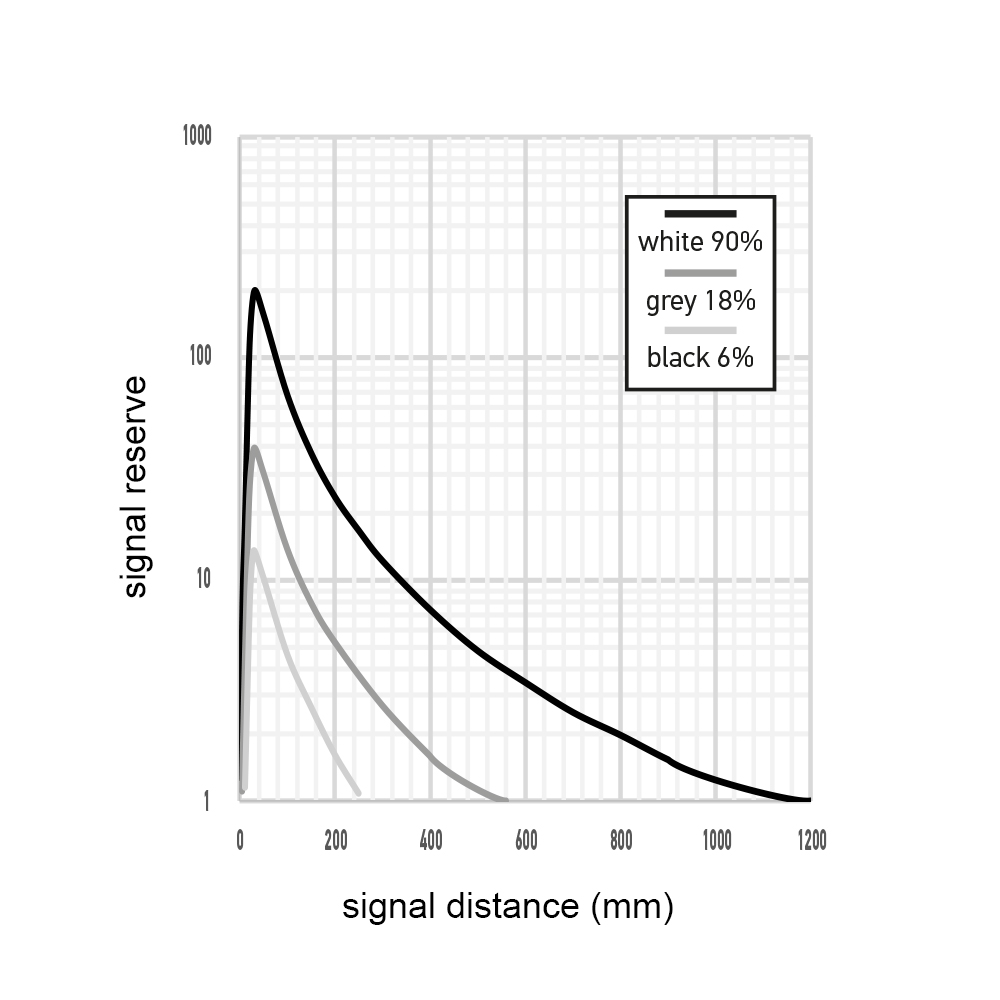

| Nominal sensing distance | 1m |
| Sensitivity adjustment | 1 turn trimmer |
| Minimum sensing distance (blind zone) | 0mm |
| Function Principle | Diffuse beam |
| Notes | white target Kodak 90% 400 x 400mm |
| Optic position | Radial 90° |
| Functions | Diffuse beam |
| Output type | PNP Lon |
| Output Function | Lon |
| Switching frequency | 1kHz |
| Response time | 500µs |
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 35mA |
| Load current | ≤100mA |
| Leakage current | ≤ 300 μA |
| Output voltage drop | ≤2V@Iload=100mA |
| Max ripple content | ≤10% |
| LED indicators | yellow OUTPUT LED, green STABILITY LED |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | LED Red (635nm) |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
| 0,1µF @Vmax - 1µF @Vmin | Yes |
| Housing Material | Plastic Polymer Fiber Glass reinforced |
| Connections | 2m cable |
| Active Head Material | PMMA |
| Storage temperature | - 25°C…+70°C |
| Plug connector material | Metal |
| shaft material | POM, PMMA |
| Diameter/Dimension | Cubic |
| Approvals | CE cULus |
| EMC compatibility | EN 60947-5-2 |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| Dimensions | 11x31x19 mm |
| Operating Temperature | -25°C ... 55°C |
| Mechanical Protection | IP67 |
