| Nominal sensing distance | 2m |
| Sensitivity adjustment | n/a |
| Function Principle | Through beam receiver |

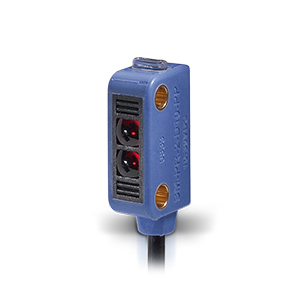

| Description | Subminiature slim case |
| Optic position | Radial 90° |
| Functions | Through beam receiver |
| Output type | PNP NO+NC |
| Output Function | NO+NC |
| Switching frequency | 385Hz |
| Response time | 1,25ms |
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 20mA |
| Load current | ≤50mA |
| Output voltage drop | ≤1,45V@Iload=50mA |
| LED indicators | Yellow (output status) |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Emission | n/a |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
| Dimensions | 8x23x12 |
| Housing Material | Plastic PC / PMMA |
| Connections | 2m cable |
| Active Head Material | PMMA |
| Storage temperature | - 35°C…+75°C |
| Material | |
| Diameter/Dimension | Cubic |
| Approvals | CE cULus |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| Dimensions | 8x23x12 |
| Operating Temperature | - 20°C…+ 55°C |
| Mechanical Protection | IP67 |
