Square

95B065280

IS-40-Y5-S3

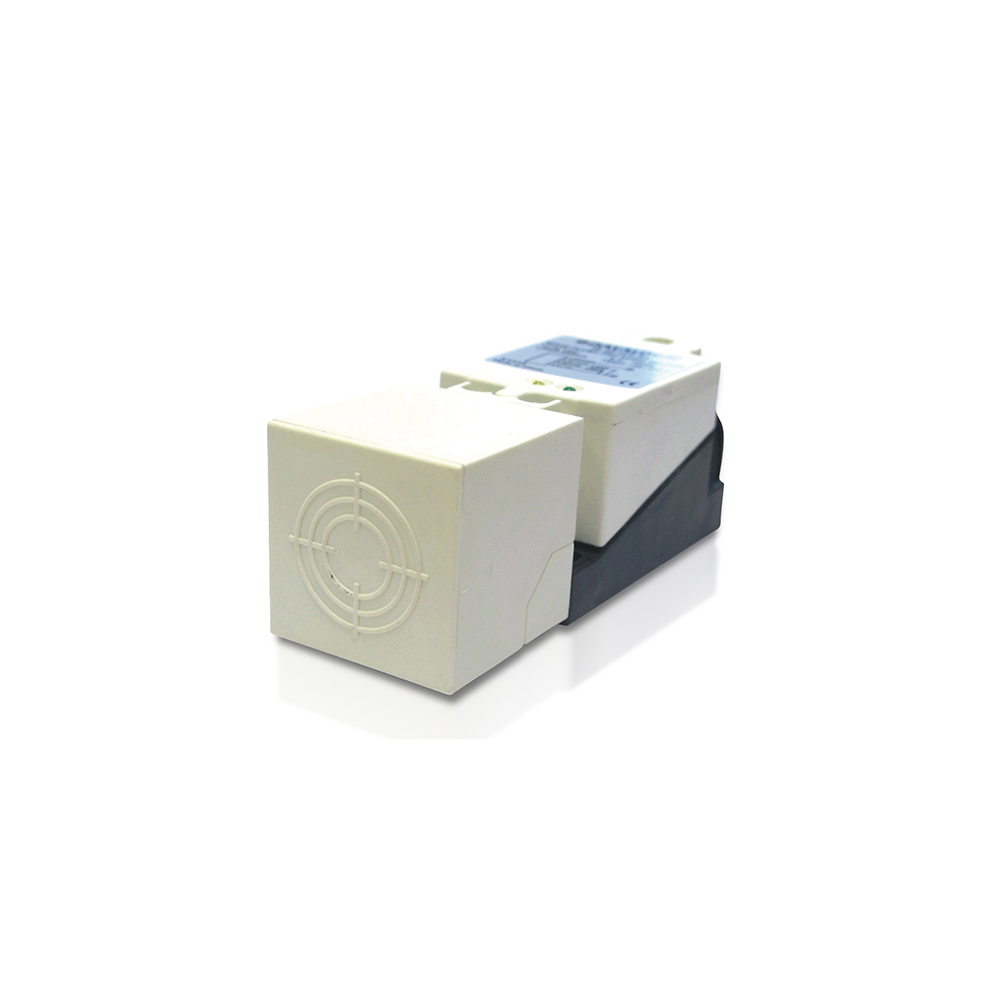

Inductive Proximity Sensor SQUARE 40 x 40 mm plastic - non flush 30 mm - pnp no + nc 3 wires - PG

Non-contact detection Cost effective and reliable detection of any metal part

Overview

  • Standard proximity M4, M5, M8, M12, M18, M30
  • Double range (i.e. M12 4mm, M18 14mm, M30
    • 20mm)
  • Unshielded or shielded models for flush mounting
  • Nickel brass or stainless steel short and long
    • housing
  • Ecolab and Diversey certifications for industrial
    • detergents
  • Multi-voltage, Metal face, Weld field immune models
  • NO/NC, NPN or PNP output and programmable
    • versions.

Technical Features

Detection properties
Nominal sensing distance 30mm
Operanting distance 0…24,3mm
Standard target 90x90mm FE360
Correction Factor copper: 0,4 / aluminium: 0,45 / brass: 0,5 / stainelss steel: 0,85
Repeat Accuracy < 1% (UB 24V Ta=23°C ±5°C)
Hysteresis < 15%
Application
Description Large block style no-flush mount
Functions Proximity
Outputs
Output type PNP
Output Function NO+NC
Switching frequency 100Hz
Response time 5
Electrical data
Operating Voltage 10...30Vdc
No-Load supply current ≤ 10mA
Load current 200mA
Output voltage drop ≤ 1,5V @100mA
Max ripple content ≤ 10%
LED indicators Yellow LED output state
Short-circuit protection Yes
Reverse Polarity Protection Yes
Emission ≥100kHz
Protection against inductive loads Yes
Mechanical data
Mounting Unshielded
Dimensions 40x41x118
Housing Material Plastic - PBT
Connections Terminal block
Active Head Material PBT
Material Plastic - PBT
Diameter/Dimension 40x41x118
Test/Approvals
Approvals CE
Generical Data
Dimensions 40x41x118mm
Operating Temperature -25°C…+70°C
Mechanical Protection IP67
