| Nominal sensing distance | 5mm |
| minimum detectable object | 0,5mm |
| Sensitivity adjustment | Teach-in |
| Function Principle | Fork for label detection |

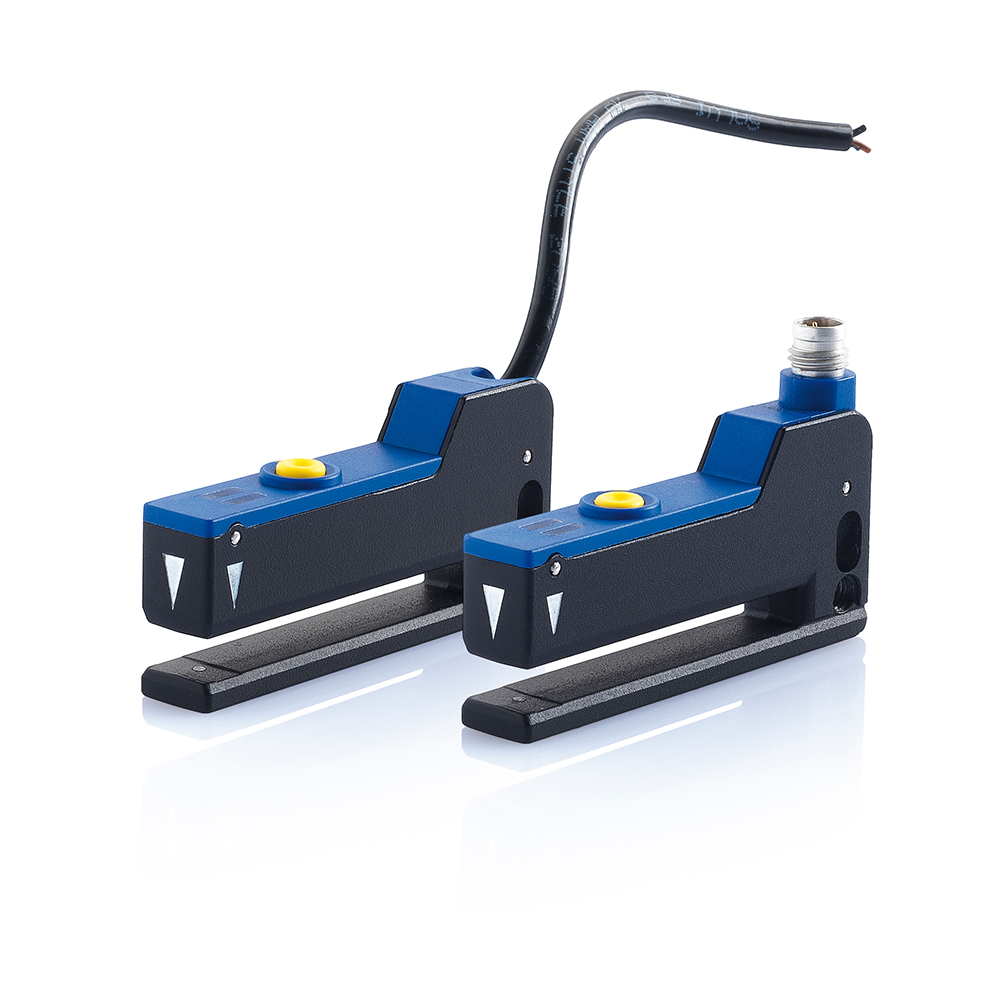

| Description | Slim case - fork slot 5x50 mm |
| Functions | Fork for label detection |
| Output type | PNP Don |
| Output Function | Don |
| Switching frequency | 12kHz |
| Response time | 40 µs |
| Operating Voltage | 10…30VDC |
| No-Load supply current | ≤ 30mA |
| Output voltage drop | ≤2V |
| Short-circuit protection | YES |
| Reverse Polarity Protection | Yes |
| Emission | LED Infrared |
| Interference to external light | according to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Contact resistance | 500 Vac 1 min., between electronics and housing |
| Dimensions | 11x25x64 |
| Housing Material | Metal - Zamak / PBT |
| Connections | M8 plug 4pin |
| Active Head Material | PMMA |
| Storage temperature | - 20°C…+70°C |
| Material | |
| Depth slot detection | 50,5mm |
| Approvals | CE cULus |
| Shocks and vibrations | 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
| Dimensions | 11x25x64 |
| Operating Temperature | - 20°C…+ 55°C |
| Mechanical Protection | IP65 |
