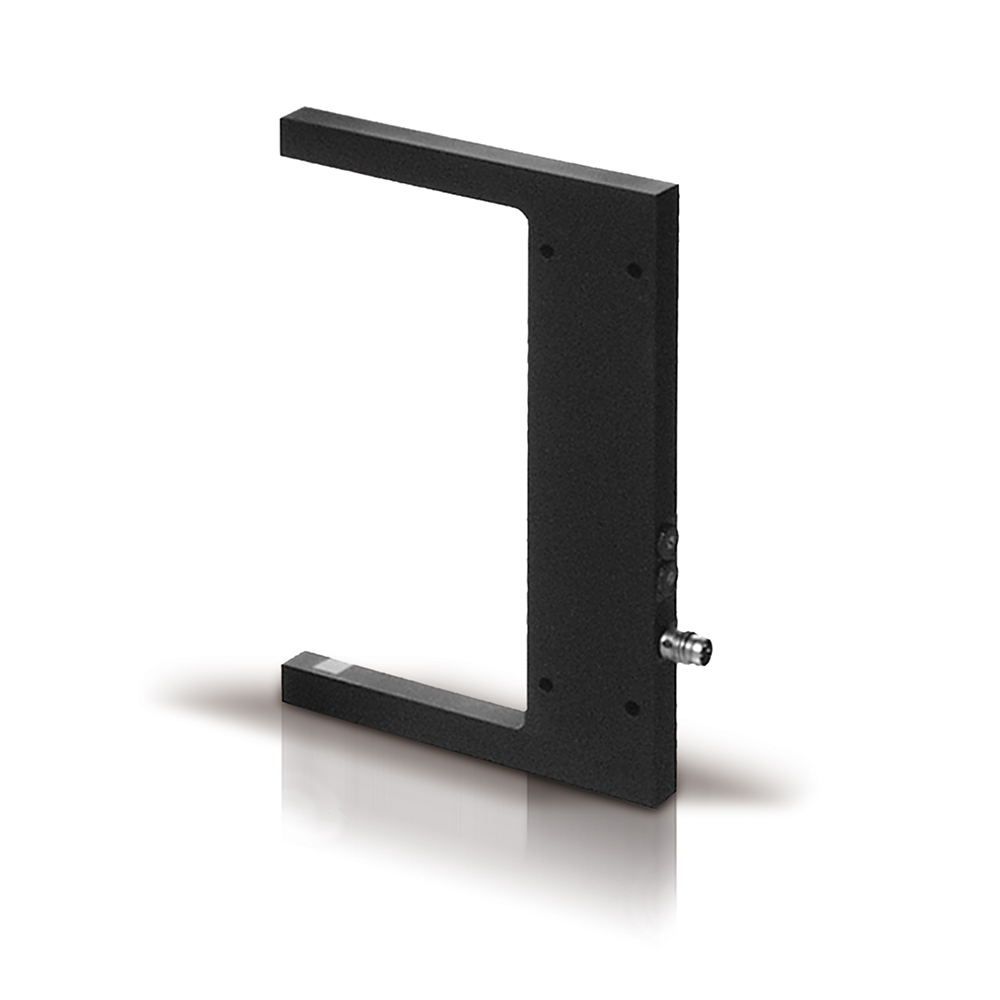

SRF

95B020080

SRF-120-5-P
Photoelectric Sensor Photoelectric Fork Red LED emission Wide Gap Fork sensor 50 mm. slot npn - M8

Ultimate precision using LED or LASER emissions for high resolution

Overview

  • Visible red emission models
  • High resolution LASER models
  • Sensitivity adjustment trimmer and dark/light selectors
  • Industrial metal housing with glass lenses

Technical Features

Detection properties
Nominal sensing distance 120mm
minimum detectable object 0,80mm
Sensitivity adjustment Trimmer
Application
Function Principle Fork for small object detection
Description Slim case - fork slot 120x54 mm
Functions Fork for small object detection
Outputs
Output type PNP L/D selectable
Output Function L/D selectable
Switching frequency 1,5kHz
Response time 0,33
Electrical data
Operating Voltage 10…30VDC
No-Load supply current ≤ 35mA
Load current ≤200mA
Output voltage drop ≤ 3V
LED indicators yellow OUTPUT LED, green STABILITY LED
Emission LED Red
Interference to external light according to EN 60947-5-2 : 2020
Mechanical data
Dimensions 10x140x84
Housing Material Metal - Gd-Zn / Glass
Connections M8 plug 4pin
Storage temperature - 20°C…+70°C
Material
Test/Approvals
Approvals CE cULus
Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
Generical Data
Dimensions 10x140x84
Operating Temperature - 10°C…+ 60°C (Without freeze)
Mechanical Protection IP67
