| Nominal sensing distance | 300mm |
| Thermal drift of Sr | ≤2% |
| Repeat Accuracy | 0,50% |
| Beam angle | 7° ± 2° |
| Resolution | ≤2mm |
| Sensitivity adjustment | Teach-in button |
| Hysteresis | 1% |
| thermal compensation | Yes |
| Minimum sensing distance (blind zone) | 40mm |
| Linearity error | 1% |
| Function Principle | Diffuse reflection |
| Output type | 0...10V |
| Output Function | |
| Switching frequency | 8Hz |
| Response time | 500ms |
| Operating Voltage | 10 - 30Vdc |
| No-Load supply current | ≤35mA @Val = 30V |
| Load current | 100mA |
| Leakage current | 10μA @ 30Vcc |
| Output voltage drop | 2,2Vmax. @ IL=100 mA |
| Max ripple content | 5% |
| LED indicators | green: echo - yellow: output |
| Time delay before availability | ≤300ms |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Impulsive Overvoltage Protection | Yes |
| Minimum load resistence | 3kΩ |

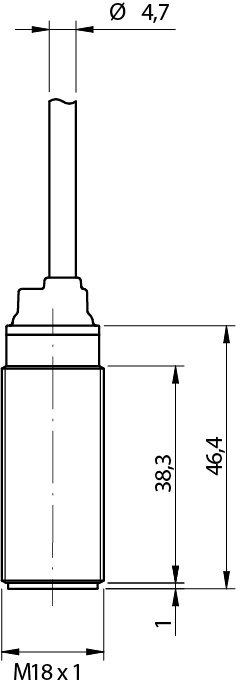

| Dimensions | M18 x 1 / L = 46,4mm |
| Weight | 75g |
| Housing Material | PBT housing |
| Connections | 2m PVC Cable |
| Tightening torque | 1Nm |
| Operating temperature | - 20°C…+ 70°C |
| Storage temperature | - 35°C…+ 80° C without freeze |
| Transducer Frequency | 300kHz |
| Diameter/Dimension | M18 |
| Approvals | CE cULus |
| EMC compatibility | IEC 60947-5-2 |
| Shocks and vibrations | IEC EN60947-5-2 / 7.4 |
| Degree of protection | IP67 |
| Supplied Accessories | 2 nuts M18x1, 2 washers Ø 18 |
| Dimensions | M18 x 1 / L = 46,4mm |
| Operating Temperature | - 20°C…+ 70°C |
| Mechanical Protection | IP67 |
